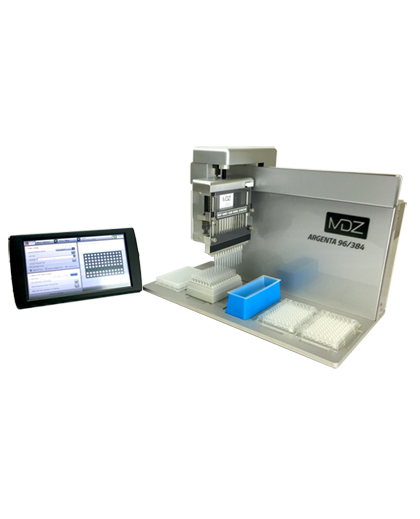

Product Name：Fully Automated Liquid Handling Instrument ARGENTA

Performance Specifications

Pipetting Channels

12 channels for 96 well format

24 channels for 384 well format

Volume Range

1uL to 200uL

1uL to 50uL

Precision

@ 100uL

< 0.5% CV

@ 50uL

< 0.05% CV

@ 10uL

< 1.5% CV

@ 5uL

< 3.0% CV

< 1.5% CV

@ 1uL

< 5.0% CV

Accuracy

@ 100uL

< +/- 1.0%

@ 50uL

< +/- 1.0%

@ 10uL

< +/- 2.0%

@ 5uL

< +/- 3.0%

< +/- 2.0%

@ 1uL

< +/- 3.0%

Plate Formats

96 well standard, shallow, deep well, microtube, V, U and flat bottom.

384 well standard, shallow, deep well, V, U and flat bottom.

Functions and Protocols

Plate Fillings, Serial Dilutions, Plate-to-Plate transfers, Plate Replication, Sample Preparation, Cell-based assays setup, Timed Reactions, Tube-to-tube Transfers and others more complex advanced protocols can be implemented.

Plate Fillings, Serial Dilutions, Plate-to-Plate transfers, Plate Replication, Sample Preparation, Cell-based assays setup, Timed Reactions, Tube-to-tube Transfers and others more complex advanced protocols can be implemented.

Note:the instrument uses a programmable calibration algorithm, where aspiration, dispense and liquid speed can be adjusted for a particular reagent. Precision and accuracy can be highly improved for a particular reagent and transfer volume.

1-Precision show as percentage of coefficient of variation

2-Multichannel specifications represent the performance of all channels of a pipette.

3-All values shown as reference. See note above.

Technical Data

Dimensions (W x D x H)

Main Unit: 520 x 285 x 360 [mm]

Touch screen controller: 284 x 160 x 135 [mm]

Weight

Main Unit: 20 [kg]

Touch screen controller: 1.5 [kg]

Power Requirements

Main power supply: 100–240 VAC, 47-63 Hz

Device input: 24 VDC, 120 W

Operating Temperature

5–40°C    (rel. humidity 80% up to 30°C or 45% rel. humidity at 40°C)

Storage Temperature

-10 to +50°C
