The Sci-Print VX Series, comprised of the Sci-Print VX2 and the Sci-Print VXL, is Scinomix’ standard line of fully automated tube and vial labeling systems. Both of these systems cater to a wide range of applicati...
|

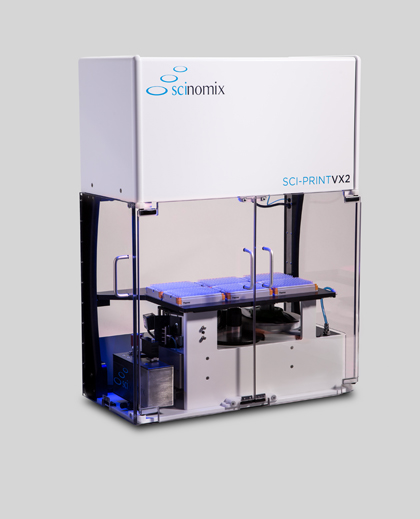

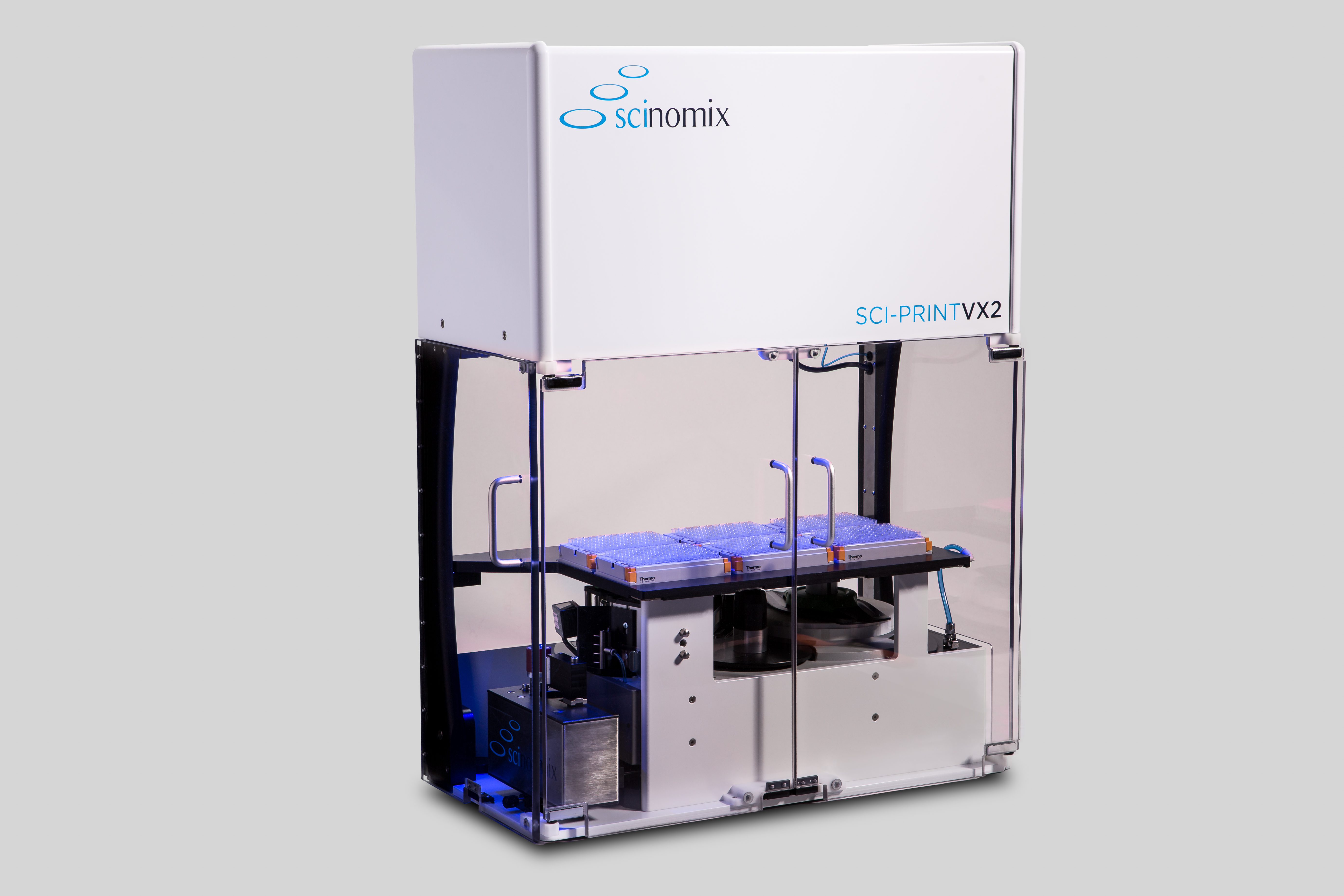

1044 SCI-PRINT VX2 6 position work deck |

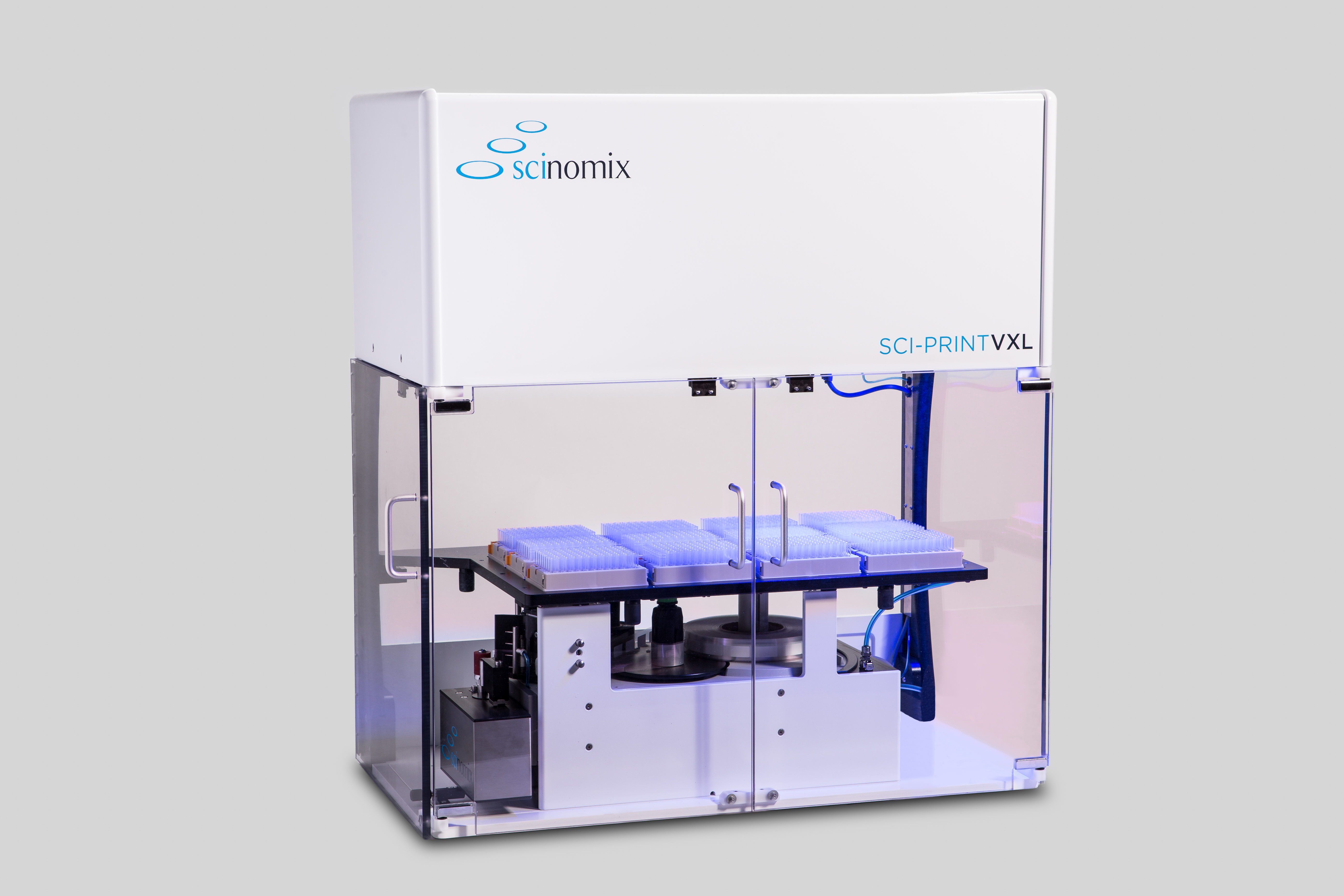

1061 SCI-PRINT VXL 12 position work deck |
|
FEATURES • Labels a variety of tubesranging from 0.5 mL to 50 mL • Throughput of up to 425 tubes per hour• One system handles multiple tube types • Thermal transfer printer (300 or 600 dpi) • User friendly windows based software • Optional 1D/2D barcode scanner for data lookup or validation • Optional filling of vials using external pumps • Uncapping/recapping of vials with lids |
BENEFITS • Increases productivity and efficiency in the lab • Provides valuable walk away time to attend to more important tasks in the lab • Consistency of label placement on each tube• Improves barcode scanning process • Benchtop equipment to save valuable space in the lab • Eliminates human error that can occur from hand labeling • Reduces repetitive injuries from hand labeling |
Software
|

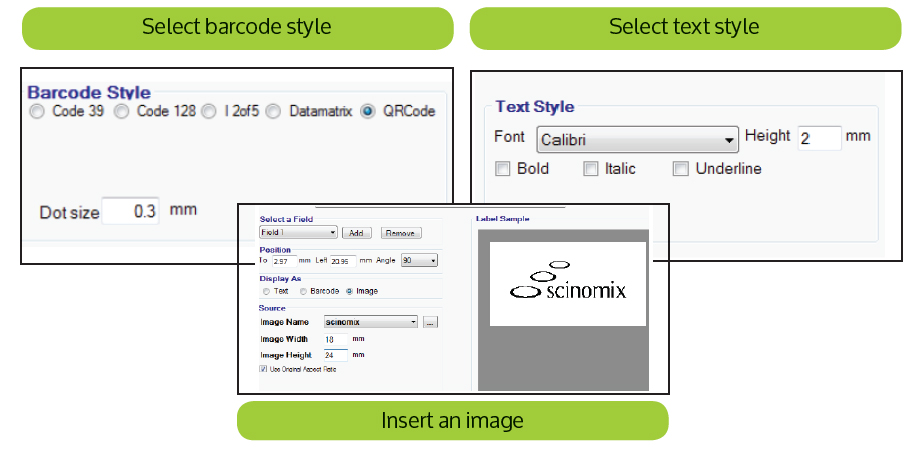

Our windows based softwarehas several built in features including a label designer and the ability to store and recall multiple system configurations. Parameters can be stored forvarious labeling runs making the systems an easy to use turnkey system. |
|
• User friendly graphicalwindows based control software • Easy recall of multiple user- defined run parameters • Stores multiple user-defined rack/plate configurations • Scripting available for easy LIMS interfacing • Configurable label definitions • Customizable label stocks • Multiple 1D and 2D barcode fonts • Enabled symbologies: Code 128, Code 39 (full ACSII), Interleaved 2 of 5, DataMatrix (2D) • Full diagnostic and test utilities |
 |
Optional Features:Barcode Scanning
|
An optional barcode scanner can be mounted to read 2D barcodes on Micronic and Matrix style vials for data lookup or it can be mounted for barcode validation after the label is applied. |
|
 |
|
|

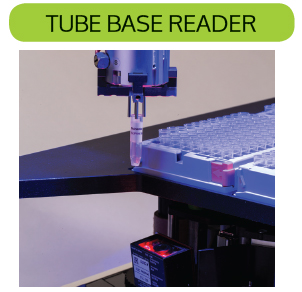

• Reads barcode on thebottom of the tube for data lookup and tracking • Part Number: P1044-250-000 |

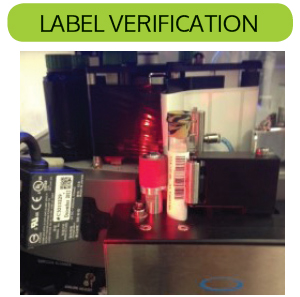

• Verifies that the barcodeon the label is correct • Part Number: P1044-250-200 |
|

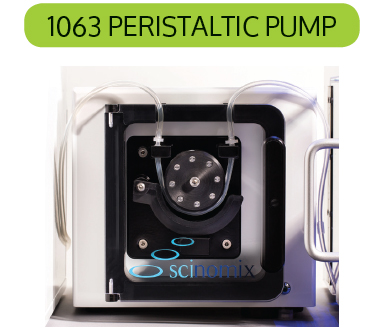

If filling is required,an external peristaltic pump can be easily attached tothe labeling systems for your filling needs.
|
|
 |
|
|
• Compact unit for highervolumes where high precision is not required • Works well with larger volumes for larger vials |
Custom Racks
For customers working withtubes that are not pre-racked，Scinomixoffers a variety of custom tube racks. We have a library
of over 50 unique custom racks and adaptors. We frequentlycreate custom rack designs to meet individual customer needs.
Here are some examples：
|
Part Number |
Description |
Tube Type |
Col x |
|
1044-500-013 |
Single Position cryovial rack |
2 mL Sarstedt |
6x8 |
|
1044-500-017 |
Sing Position cryovial rack |
2 mL Nunc/Corning, internal thread |
6x8 |
|
1044-500-018 |
Single Position rack |
2 mL Wheaton/Corning, exter- nal thread |
5x8 |
|
1044-500-019 |
VX2 full deck rack for 15 mL conical |
15 mL Falcon/Corning |
7x16 |
|
1044-500-020 |
VX2 full deck rack for 50 mL conical |
50 mL conical |
5x10 |
|
1044-500-022 |
VX2 full deck for cryovials |
2 mL Sarstedt |
27x12 |
|
1044-500-023 |
VX2 full deck for cryovials |
5 mL Corning/Nalgene |
24x10 |
|
1044-500-024 |
VX2 full deck for vacutainers |
EDTA vacutainers |
22x10 |
|
1044-500-025 |
VX2 full deck for cryovials |
Sarstedt thtered tubes |
8x25 |
|
1044-500-036 |
VX2 full deck for 2 mL Nunc |
2 mL Nunc |
24x10 |
|
1044-500-037 |
VXL 1/2 deck rack |
Syringe Inserts |
13x13 |
|
1044-500-038 |
Tecan tube rack holder for VX2 |
Tecan slide in tube racks |
N/A |
|
1044-500-077 |
VXL 1/2 deck rack for Cryovials |
Sarstedt 2.0 mL cryovial |
17x18 |
