Overview

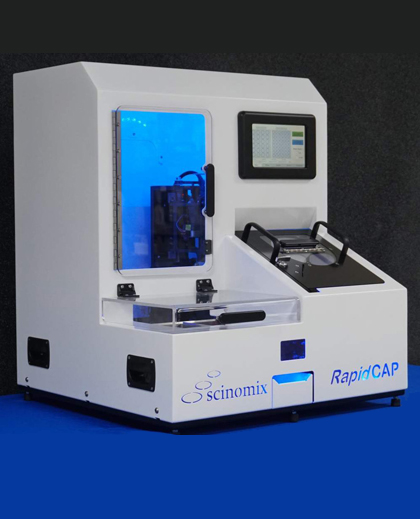

Product Name：RapidCAP
C A P P E R / D E C A P P E R The Scinomix RapidCap is an automated capping anddecapping device that eliminates the time consuming and tedious task of capping and decapping tubes in the lab, providing significant ...
C A P P E R / D E C A P P E R The Scinomix RapidCap is an automated capping anddecapping device that eliminates the time consuming and tedious task of capping and decapping tubes in the lab, providing significant ...
Features
•Caps and de-caps 0.5 mL or 2 mL Cryovials (contactScinomix for
custom sizes)
•Capping rate: approximately 6.5 seconds per tube
•De-capping rate: approximately 4.0 seconds per tube
•Easy set-up, plug and play system, self-contained (no external
computer required)
•All electric (no air required)
•Different rack configurations can be processed within same run
•Can handle 2 racks (ANSI SLAS footprint*) of 48 tubes at the same
time, or 1 rack footprint of 96 tubes
•Accommodates Honeycomb style racks (contact Scinomix for
custom racks)
•Cap sorter can be easily removed
•Multiple drums can be purchased if working with different cap colors
Drum capacity: 1,500 caps
Benefits
• Time savings
• Cost savings
• Reduces repetitive injuries from capping and
de-capping tubes
• Increases productivity and efficiency
• Eliminates tedious tasks
|
SCINOMIX RAPIDCAP SPECIFICATIONS |
|
|
System Requirements |
N/A |
|
Network Requirements |
N/A |
|
Air Requirements |
N/A |
|
Main Power Requirements |
100-120V 3.0A / 200-240V – 1.7A |
|
Transport & Storage Temperature |
-20 degrees C to +55 degrees C (20% to 80% non-condensing) |
|
Operating Environment |
Indoor use only |
|
Physical Dimensions |
Height: 27″ (686mm) |
|
Average Processing Rate |
Capping: 6.5 sec per tube |
|
Tube Specifications |
0.5ml to 2ml Cryovials |
