Overview

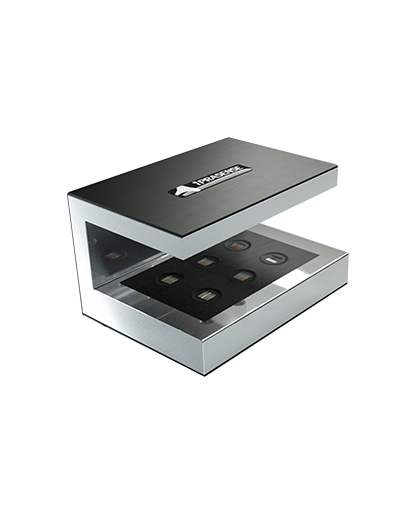

Product Name：CYTONOTE 6W

Features

THE MOST SIMPLE LIVE CELL-IMAGING SYSTEM

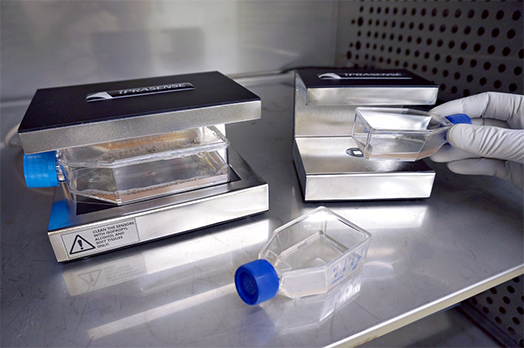

The Cytonote is the most simple live cell-imagingsystem designed for recording cell movies and analysing a variety of cellculture from inside the incubator. The innovative and patented « lenslessimaging » technology pushes the boundaries of microscopy with its super wideField of View and its capability to capture and analyse precisely severalthousands of cells without any focus and brightness settings.

THE HORUS SOFTWARE

The image analysis and results from the Cytonote areperformed from the HORUS dedicated software. HORUS is application oriented, itprovides automatic cell count, quantitative confluence determination, cell sizeor cell tacking. Full field images (30 mm2) of the samples are stored and canbe accessed and zoomed at any time.

Technical Parameters

TECHNICAL SPECIFICATIONS
Cells	Eucaryotic cells : adherent monolayer, suspension cell at bottom of culture ware or in micro-slides, 3D spheroids
Media	Liquid or semi-solid (collagen)
Culture Vessels	Standard plastic petri dish, culture flasks, multiwell plates, max height 55 mm
Resolution	Eucaryotic cells : adherent monolayer, suspension cell at bottom of culture ware or in micro-slides, 3D spheroids
Field Of View	29.4 mm²
Working Distance	0 to 5 mm
Image Rate	1.5 image/minute
Light Source	LED 650 nm
Sensor	CMOS 10 Mpix
Dimensions	121110 cm
Weight	3 Kg
Power Supply	USB
