Product Name：CYTONOTE 1W

HOW TO USE IT?

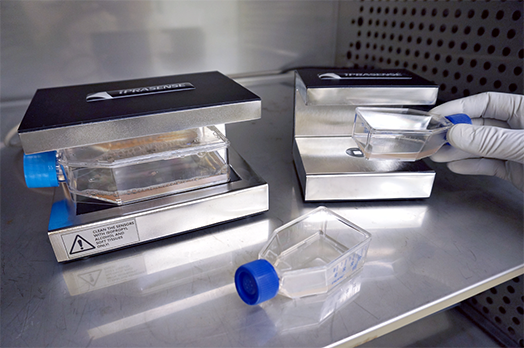

The Cytonote is designed to be compatible with every standard lab dishes,T-Flask
or slides. Select your favorite container from your favorite manufacterand place it
on the Cytonote. If you want, modify the delay between 2acquisition (default: 20min)
and your culture is ready to be recorded over longperiod of time.
As explained, no need to adjust focus, brightness orany other parameters, our algorithm
will reconstruct cells wherever cells arelocated... from a few micrometers to some
millimeters! This caracteristic madesCytonote a extermely robust device not fearing temperature variation, cellsdescent inside matrigel, or any other parameter which can affect traditionalfocus adjustment.

WHAT ARE THE RESULTS?

Working on a ultra wide field of view, all datas recovered from pictures taken by Cytonote are representative of your cell culture. Indeed, working on29.4mm² allow to follow several thousands of cells at a time.

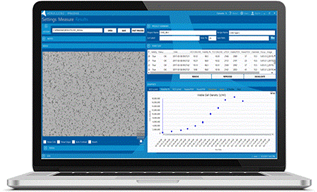

Real-time Imaging of cell culture allowing you tobrowse trough the whole acquisition set, to play the timelapse or to export itinto video format
Automatic Cell Count
Confluence Analysis
Growth Curve based on cell count or confluence for both adherent andnon-adherent cells

UP TO 6 DEVICES SIMULTANEOUSLY

It is designed to monitor up to 6 Cytonotessimultaneously for 6 parallel or
independent cell cultures.

TECHNICAL SPECIFICATIONS

Dimensions

12(W)*11(D)*10(H)

Weight

1 Kg

Materials

Stainless Steel

Resolution

Eucaryotic cells : adherent monolayer, suspension cell at bottom of culture
ware or in micro-slides, 3D spheroids
